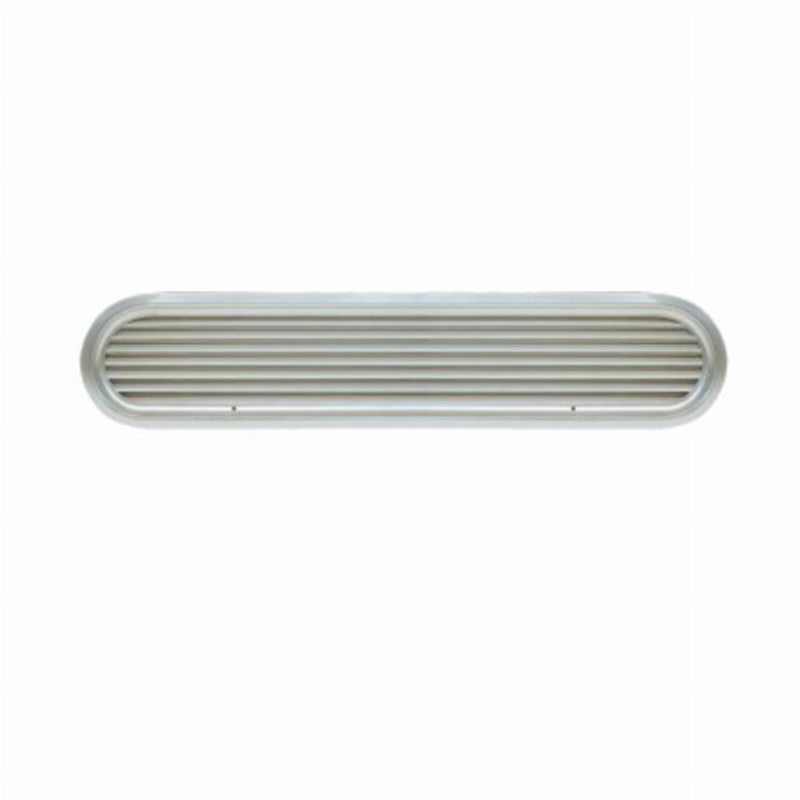

xVetus Louvered Air Suction Vent ASV100
A marine diesel engine needs sufficient air in order to function correctly. The volume of combustion air required is approximately 6.1m³ per kW (4.5 m³ per hp) per hour, based on a maximum air velocity of 3m/sec. In addition to combustion air, the engine also requires sufficient ventilation air to dissipate the radiated heat. The volume of ventilation air required is about the same as the combustion air needed. The design of the VETUS air suction vents is based on these principles. The model numbers given in the table relate to the engine horsepower for which they are suitable. When designing the engine room layout, it is therefore easy to calculate the size of the air vents required. Do not forget to allow for extra vents to extract the heat from the engine space as well. For example: A boat with an engine of 60 hp will require for the combustion and ventilation air, 2 louvred air suction vents type 60 (1 x Starboard + 1 x Port) or 4 type 30 vents (2 x Starboard + 2 x Port).
Features:
- Polished Aluminium Frame
- Naturally Anodised Aluminium Grilles
- Optional Dorade Box to suit
|
Part Number |
Type |
Dimensions (H x W) |
|
VEASV020A |
ASV 20 |
30cm x 11.7cm |
|
VEASV025A |
ASV 25 |
35cm x 11.7cm |
|
VEASV030A |
ASV 30 |
36cm x 13cm |
|
VEASV040A |
ASV 40 |
45cm x 13cm |
|
VEASV050A |
ASV 50 |
49cm x 14.6cm |
|
VEASV060A |
ASV 60 |
57cm x 14.6cm |
|
VEASV070A |
ASV 70 |
59cm x 15.9cm |
|
VEASV080A |
ASV 80 |
66cm x 15.9cm |
|
VEASV090A |
ASV 90 |
67cm x 17.2cm |
|
VEASV100A |
ASV 100 |
73cm x 17.2cm |
|
VEASV125A |
ASV 125 |
75cm x 19.8cm |
|
VEASV150A |
ASV 150 |
89cm x 19.8cm |
