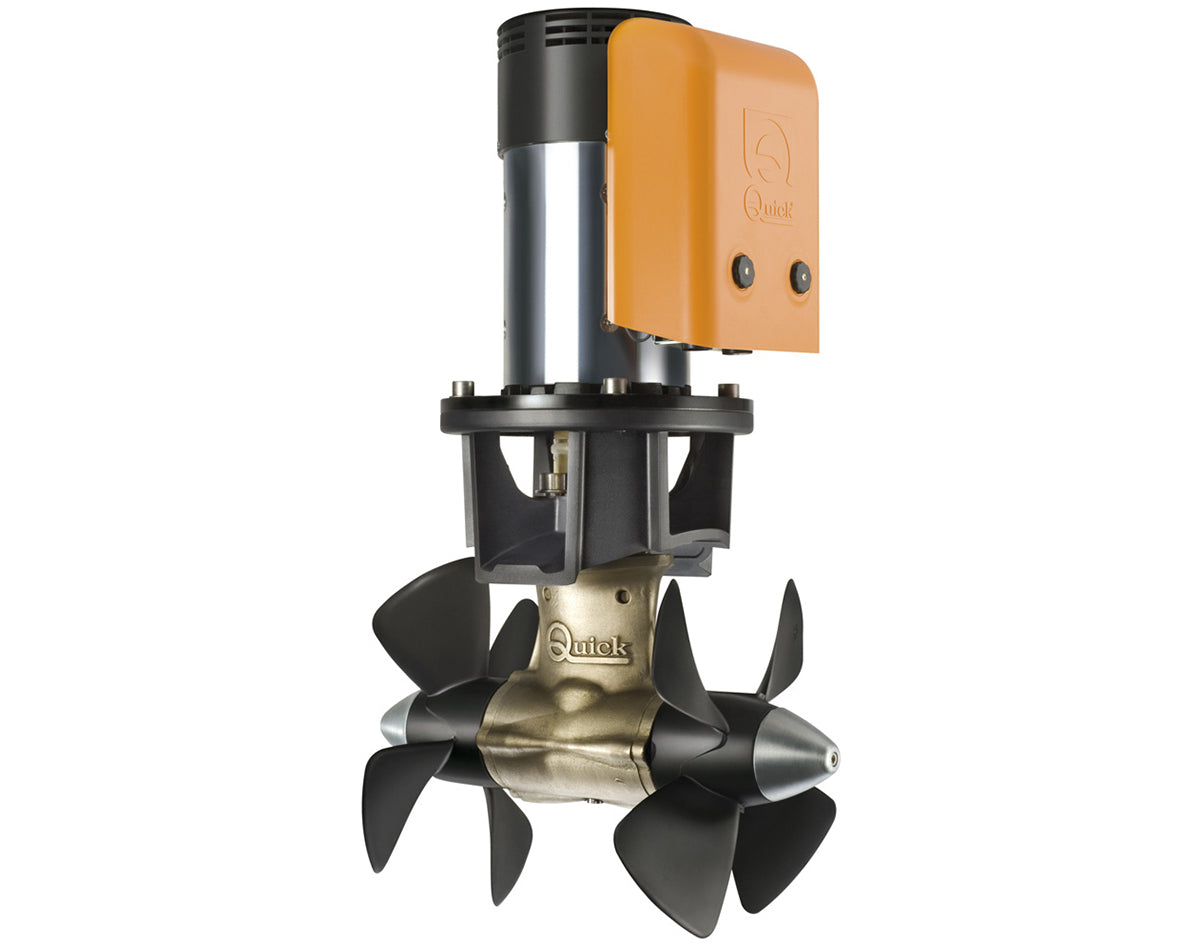

Quick Bow Thruster BTQ300 250KGF 10kw 24v

This Quick BTQ300 thruster can be used on either bow or stern, and has an electric DC motor with double propellers.   Available in 24V, with 10kW power and 250Kgf, it requires a tunnel diameter of 300mm (11.8 inches).

For the thruster to operate, you must also purchase a controller, control cable, fuse, fuse holder and bow or stern tunnel.  A second controller, control cable extension lead & a splitter are also required for dual-station installations.

The superior quality of Quick thrusters is acknowledged by the best boatbuilders worldwide.  Designed and manufactured in Quick Nautical Equipment premises, this Quick BTQ300 thruster boasts the 'Made-in-Italy' prestige in every component.

It can be installed on either bow or stern, and has an electric DC motor with double propellers.  Delivering 10kW motor power with 250Kgf, this thruster requires a tunnel diameter of 300mm (11.8 inches).

Supplied with:

Thruster
Drilling template
Gasket
O-ring (for assembly)
Installation & use manual
Conditions of warranty (3 year warranty from date of sale)
Features:

Electric DC motor
10kW motor power with 250Kgf
Double propellers
Suitable for boats 20-26m (65-85 ft) long

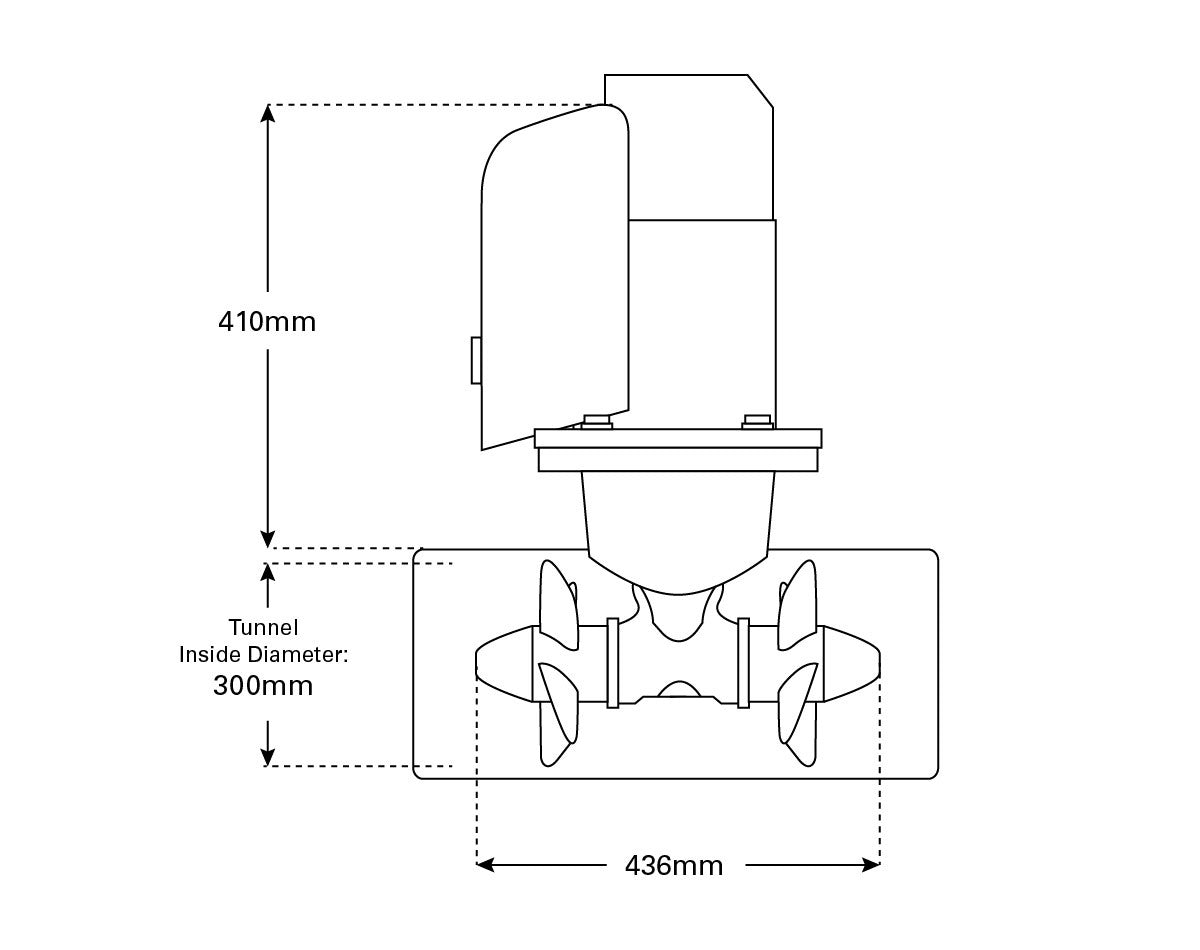

Required tunnel diameter: 300mm (11.8 inches)
Choice of controller (sold separately - see related products)
Can be installed on either bow or stern, with the use of bow tunnels or stern tunnels (sold separately - see related products)
Tunnel thrusters are the most common type of thrusters. The tunnel is installed through either the bow or the stern, and below the waterline.  The tunnel protects the propulsion unit and concentrates the propeller’s thrust.   All Quick thrusters can be installed both on both bow and stern thanks to the suitable tunnels which allow the two different installations.

Better performances, lower absorption

The 4-blade propellers guarantee maximum thrust performance and reduction in current absorption.  They are made of composite materials, resistant in every condition.  The counter-rotating system offers better thrust performances.  The two propellers have each been designed to suit left side and right side, to guarantee the same upper performances in both directions.

The gearbox has been designed so that the behaviour of the propeller is unaffected in either direction.  The bronze propeller gear leg is provided with a hydrodynamic profile that minimizes turbulence.

Maintenance is not required since the special highly-resistant components guarantee a perfect lubrication seal for life.  The anodic aluminium protection is easily replaceable. In case of total corrosion of the anode, the propeller doesn’t get lost because it’s fixed directly to the pod, independently from the anode.

The elastic joint that optimizes the alignment between motor and gearbox is an exclusive Quick design.  This acts as an even-tension device, preserving the operating system from impulses from the bow thruster, with above-average results.

Please note that in order for the thruster to operate, you must also purchase separately:

Single Station

A thruster control cable extension lead (6m, 12m, 18m or 24m)
A thruster fuse
A thruster fuse-holder
A bow thruster tunnel or stern thruster tunnel (unless your vessel already has one installed)
Please also select one of these fixed thruster control options (also purchased separately):
TCD 2022 Push Button Thruster Controller
TCD 2042 Single Joystick Thruster Controller
Dual-Station (e.g. a vessel with a flybridge)

All items for a single station, with the addition of:

A second thruster controller or TCD 2044 Double Joystick Thruster Controller
A splitter for the 2 thruster controllers
A second thruster control cable extension lead (6m, 12m, 18m or 24m)
If you have a large vessel and need to walk around it to get a better view of the dock whilst mooring, you may also wish to purchase a hand-held remote control in addition to the main, fixed thruster control:

Hand-held Radio Remote Control for Anchor Winches & Thrusters
Pocket Transmitter Remote Control for Anchor Winches & Thrusters
