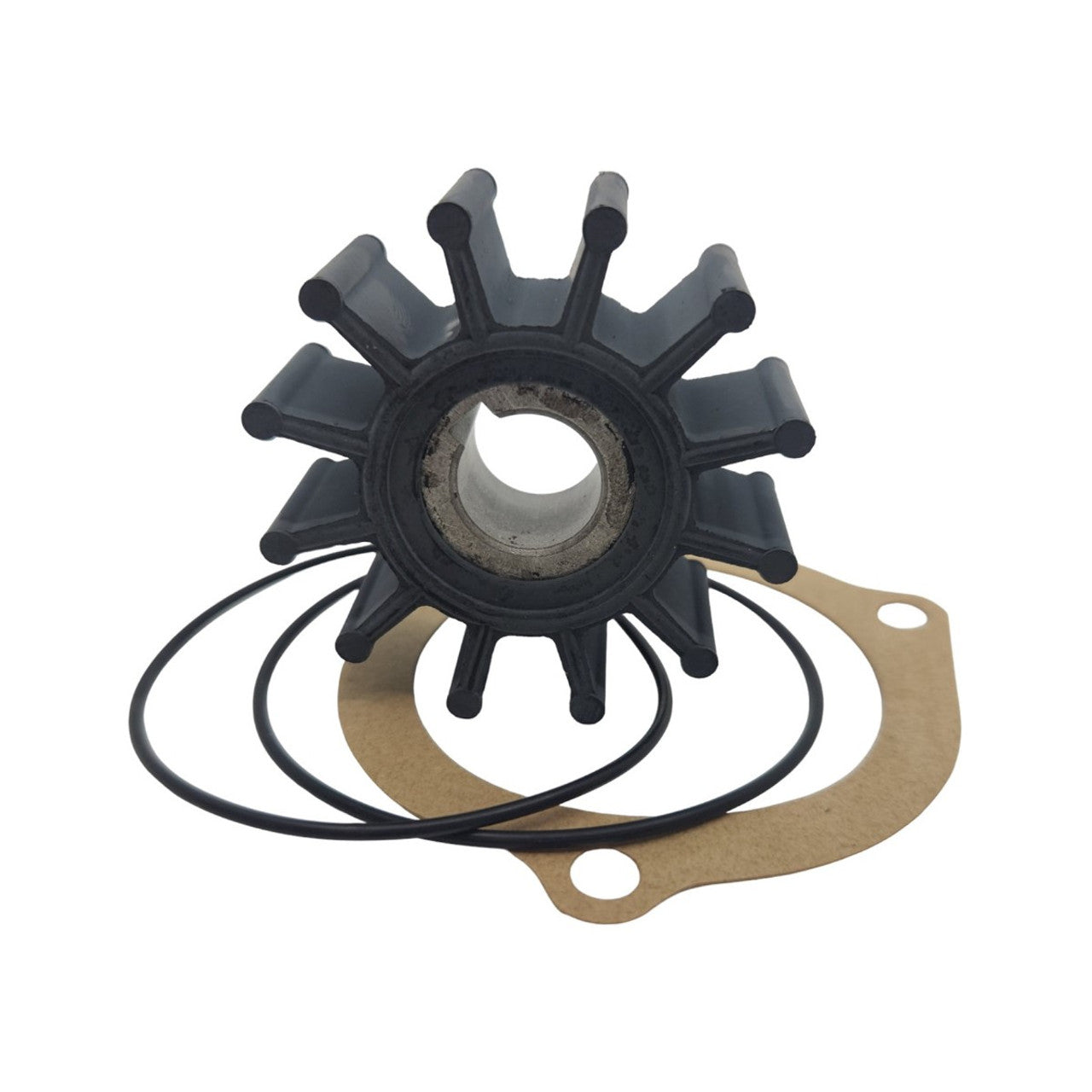

xGenuine Sherwood 9000K Kohler 229826 Seawater Impeller
Replaces Kohler part number: 229826
Suits Kohler diesel generators:
5EFKOD, 6EKOD, 7EFKOZD, 9EKOZD, 9EFKOZD, 11EKOZD, 12EFKOZD, 13.5EFKOZD, 14EKOZD, 16EKOZD, 17EFKOZD, 18EFKOZD, 20.5EFKOZD, 21EKOZD, 24EKOZD
Please note: some models have two options for seawater pump, compare your seawater pump / impeller to image two to make sure you are ordering the correct impeller.
Impeller specifications:
Material: Neoprene
Diameter: 62.5mm
Width: 22mm
Shaft type: Keyway 16mm
|
ITEM # |
DIAMETER |
WIDTH |
SHAFT DIAMETER |
KEYWAY OR SPLINE |
NUMBER OF VANES |
|
08000K |
1 9/16" (40 mm) |
3/4" (19mm |
D Slot Insert |
D Slot Insert |
6 |
|
09000K |
2 7/16" (62.5 mm) |
7/8" (22 mm) |
5/8" (15.9 mm) |
3/16" (5 mm) |
12 |
|
09959K |
2 7/16" (62.5 mm) |
1 1/4" (32 mm) |
5/8" (15.9 mm) |
3/16" (5 mm) |
12 |
|
10777K |
2 1/4" (57 mm) |
25/32" (20 mm) |
1/2" (12.7 mm) |
3/32" (3 mm) |
12 |
|
10615K |
2 9/16" (65 mm) |
1 5/8" (41 mm) |
5/8" (15.9 mm) |
3/16" (5 mm) |
12 |
|
15000K |
2 9/16" (65 mm) |
2" (51 mm) |
5/8" (15.9 mm) |
3/16" (5 mm) |
12 |
|
17000K |
3 5/16" (84 mm) |
2 7/8" (73 mm) |
5/8" (15.9 mm) |
3/16" (5 mm) |
12 |
|
18000K |
3 3/4" (95 mm) |
4" (102 mm) |
14 Tooth Spline |
14 Tooth Spline |
12 |
|
22000K |
4 1/2" (114 mm) |
4 5/16" (110 mm) |
14 Tooth Spline |
14 Tooth Spline |
10 |
|
26000K |
3 3/4" (95 mm) |
3 1/8" (80 mm) |
10 Tooth Spline |
10 Tooth Spline |
12 |
|
27000K |
3 5/16" (84 mm) |
2 7/8" (73 mm) |
11 Tooth Spline |
11 Tooth Spline |
12 |
|
29000K |
3 3/4" (95 mm) |
4" (102 mm) |
10 Tooth Spline |
10 Tooth Spline |
12 |
|
30000K |
4 1/2" (114 mm) |
4 5/16" (110 mm) |
10 Tooth Spline |
10 Tooth Spline |
10 |
