Description

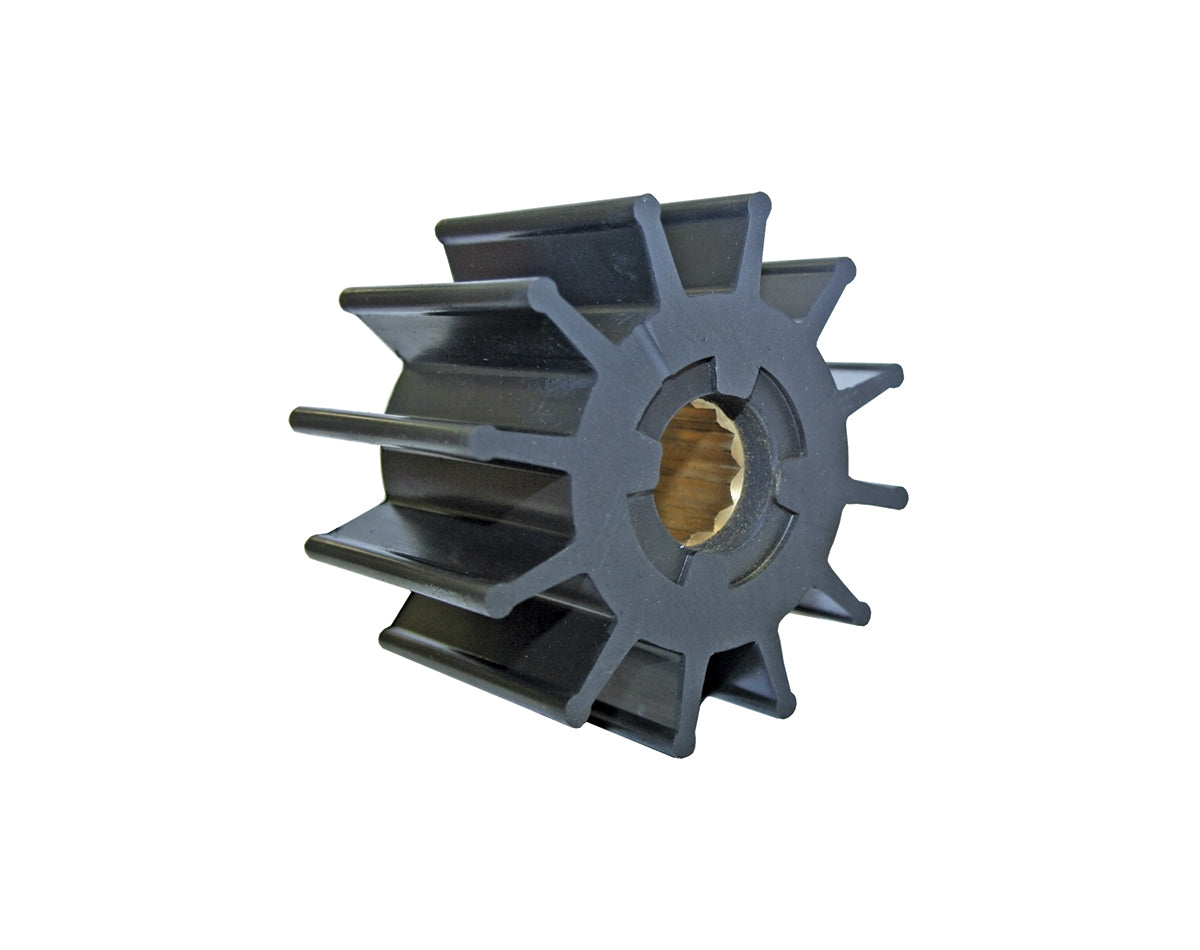

x17935-0001B Jabsco Impeller Neoprene
The Jabsco 17935‑0001 impeller is a high‑performance, heavy‑duty flexible impeller designed for marine engine cooling, raw‑water pumps, and industrial fluid‑transfer systems. Manufactured from durable neoprene and built with a precision‑machined spline‑drive brass hub, this impeller delivers high flow, excellent priming ability, and long service life under demanding operating conditions.
This model is widely used by major engine builders including Caterpillar, Detroit Diesel, Perkins, Volvo Penta, Onan, and others—and is one of the most common impellers for medium and large marine diesel engines.
| Product Specifications | |
| Feature | Specification |
| Material | Neoprene (flexible rubber) |
| Number of Blades | 12 blades |
| Impeller Diameter (A) | 95 mm (3‑3/4") |
| Impeller Width (B) | 63–63.5 mm (2‑1/2") |
| Shaft Diameter (C) | 25–25.4 mm (1") spline‑drive hub |
| Drive Type | 12‑spline drive (Q‑Profile) |
| Weight | ~1.25 lbs (approx.) |
This impeller is engineered for high‑output cooling and raw‑water transfer, delivering excellent resilience and chemical resistance in fresh or salt water.
| Cross‑Reference Numbers |
| The Jabsco 17935‑0001 directly replaces or cross‑references the following manufacturer part numbers: |
| Ancor |
| J050035 |
| Caterpillar (CAT) |
| 5L6042 |
| 5N9360 |
| 1W9046 |
| Detroit Diesel |
| 5193553 |
| 8924838 |
| 5196628 |
| Onan |
| 500135 |
| Perkins |
| 7054 |
| Volvo Penta |
| 875660, 875736‑1, 825942, 807904, 857636‑1, 877066, 21730344, 21951362 |
| Johnson Pump |
| 09‑819B |
| CEF |
| 500135 (shared reference with Onan) |
| JMP Marine |
| 8100‑01K |
| These cross‑reference numbers ensure broad compatibility across many marine diesel engine cooling systems. |
| Applications |
| Marine diesel engine raw‑water cooling |
| Heat exchanger circulation |
| Heavy‑duty commercial marine pumps |
| Industrial fluid‑transfer systems |
| Neoprene impellers like this are ideal for pumping water with minimal contamination and are unsuitable only where significant oil or fuel is present. |
