Description
xThe HotShot HD4 features a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.
Pumping 4 gallows per minute at almost 60psi, this is an extremely reliable high-flow and high-pressure diaphragm pump.
The HotShot HD4 will provide years of clean decks and satisfaction.

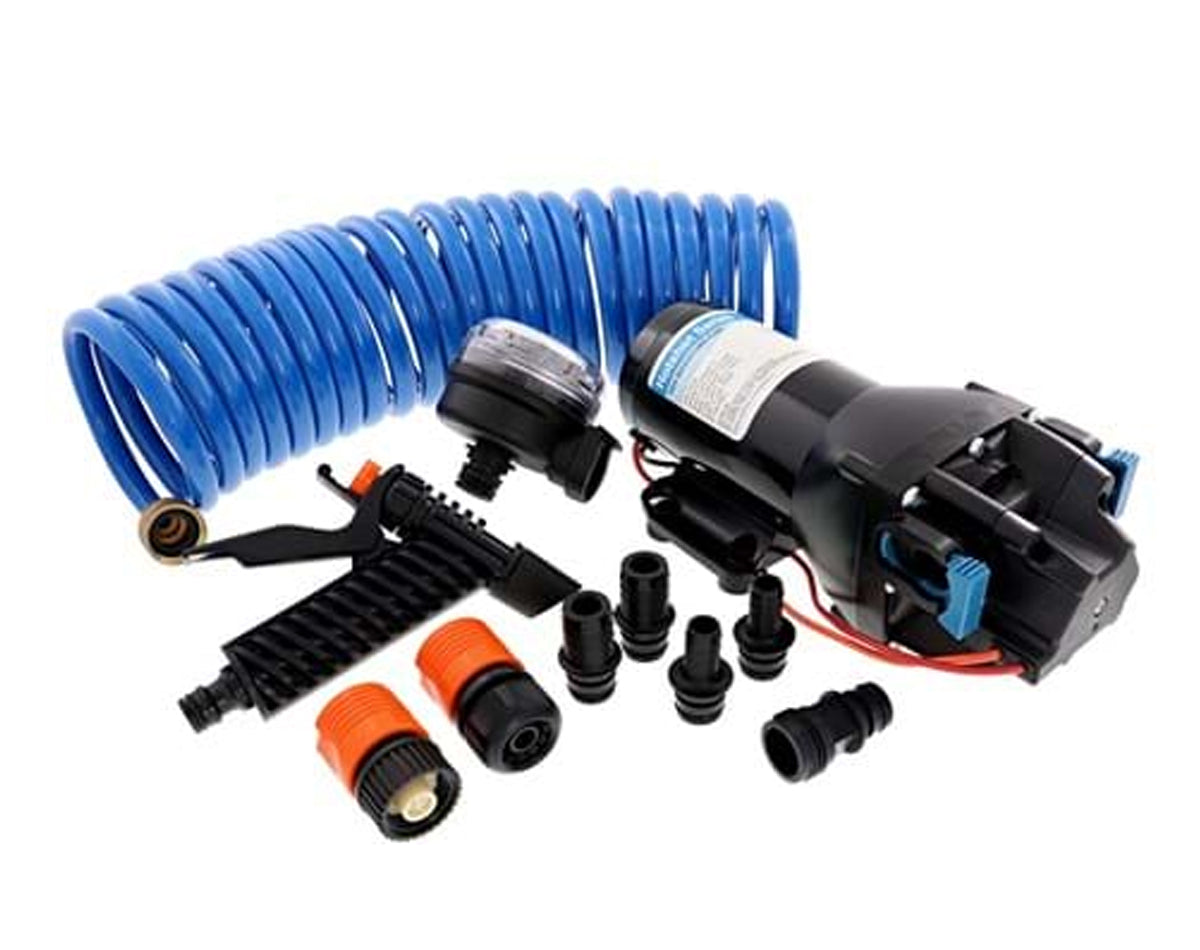

Kit includes:
- 1 x HotShot HD4 Washdown Pump
- 2 x 1/2" (13mm) straight hosebarbs
- 2 x 3/4" (19mm) straight hosebarbs
- 1 x 3/4" GHT fittings
- 1 x 90° 40 mesh quick connect strainer
- 1 x Deluxe trigger nozzle & quick connect hose adapters
- 1 x 7.6m (25") hose coil
Features:
- Co-molded diaphragm technology for long life and durability
- HD model featuring heavy duty, motor and cast aluminum lower housing which allow for long-life, even at high pressures
- Efficient and quiet operation
- Integrated, sealed pressure switch for on-demand operation
- Self-priming allows for installation versatility
- Can run dry without damage
- Self‐Priming
- Quick connect ports for ease of installation, servicing, and maintenance
- Vibration dampening mounting feet
- Full kit includes 25' (7.6m) hose coil
- A plastic housing protects the motors from corrosion.
- Provides exceptional performance in an economical footprint.
| Jabsco Part No. | Q401J-118N-4A |
|---|---|
| Replaces Old Versions | J20-162 J20-262 (32900-0092, 32901-0092, 82904-0092) |
| Voltage | 12V |
| Open Flow | 4 GPM (15.1 LPM) |
| Shut-off Pressure | 60 PSI (4.1 bar) |
| Max Current Draw | 11A |
| Recommended Fuse Size | 20A |
| Motor Design | Brushed, permanent magnet TENV |
|---|---|
| Pumphead upper housing material | Fiber reinforced polypropylene |
| Diaphragm | Co-molded TPV |
| Check Valves | EPDM |
| Max Inlet Pressure | 30 PSI (2.1 Bar) |
| Fluid Temp Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-priming Capability | 8ft min (2.4m min) |
| Certifications | CE, ISO8846, RCM |
| Ingress protection | IPX6 |
| Warranty | 3 years |
