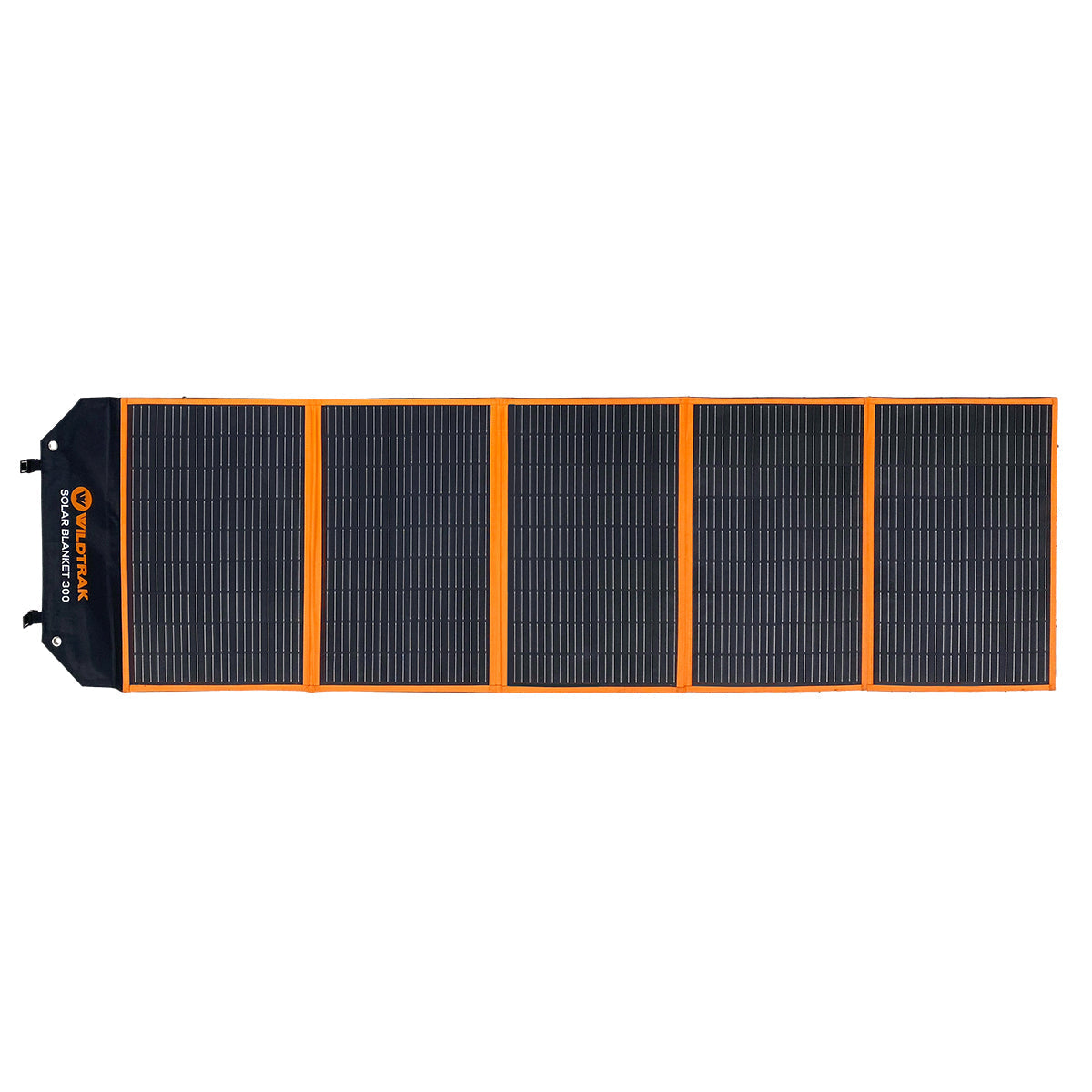

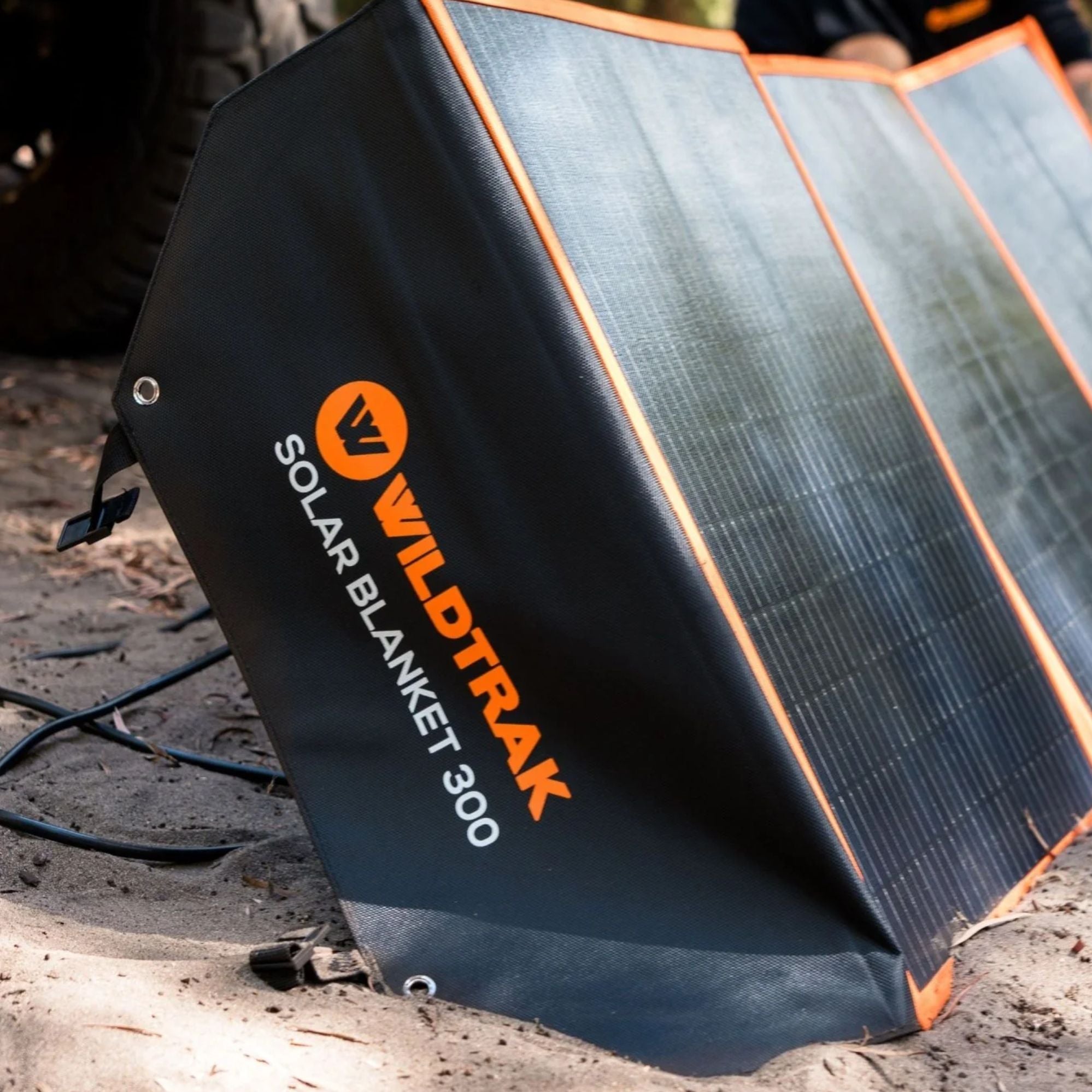

A-grade Monocrystalline Solar Cells
High quality cells for maximum power conversion and long-term reliability, allowing you to stay off-grid for longer!
MPPT Solar Controller & 5M Cable Included
Unlike many other solar panels on the market, every Wildtrak Solar Blanket includes a high-efficiency MPPT solar controller so you can set up your solar system straight out of the box. It also comes with Plug & Play Anderson-style 5M cable for quick and easy connection.
ETFE Coating - IP65
ETFE provides superior durability and high light transmittance compared to standard PET coatings. It keeps your solar blanket cleaner, cooler, and more efficient under tough Australian conditions.

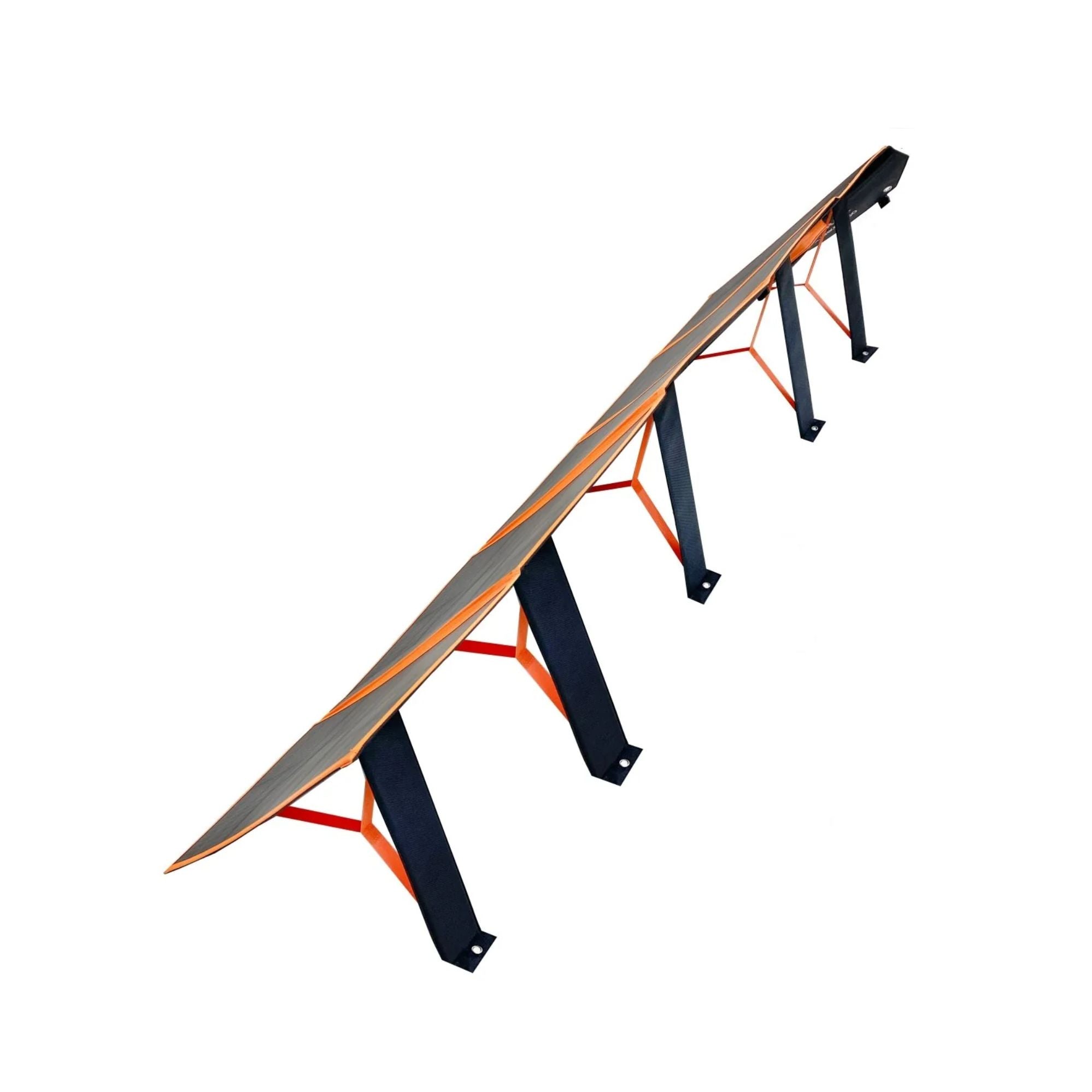

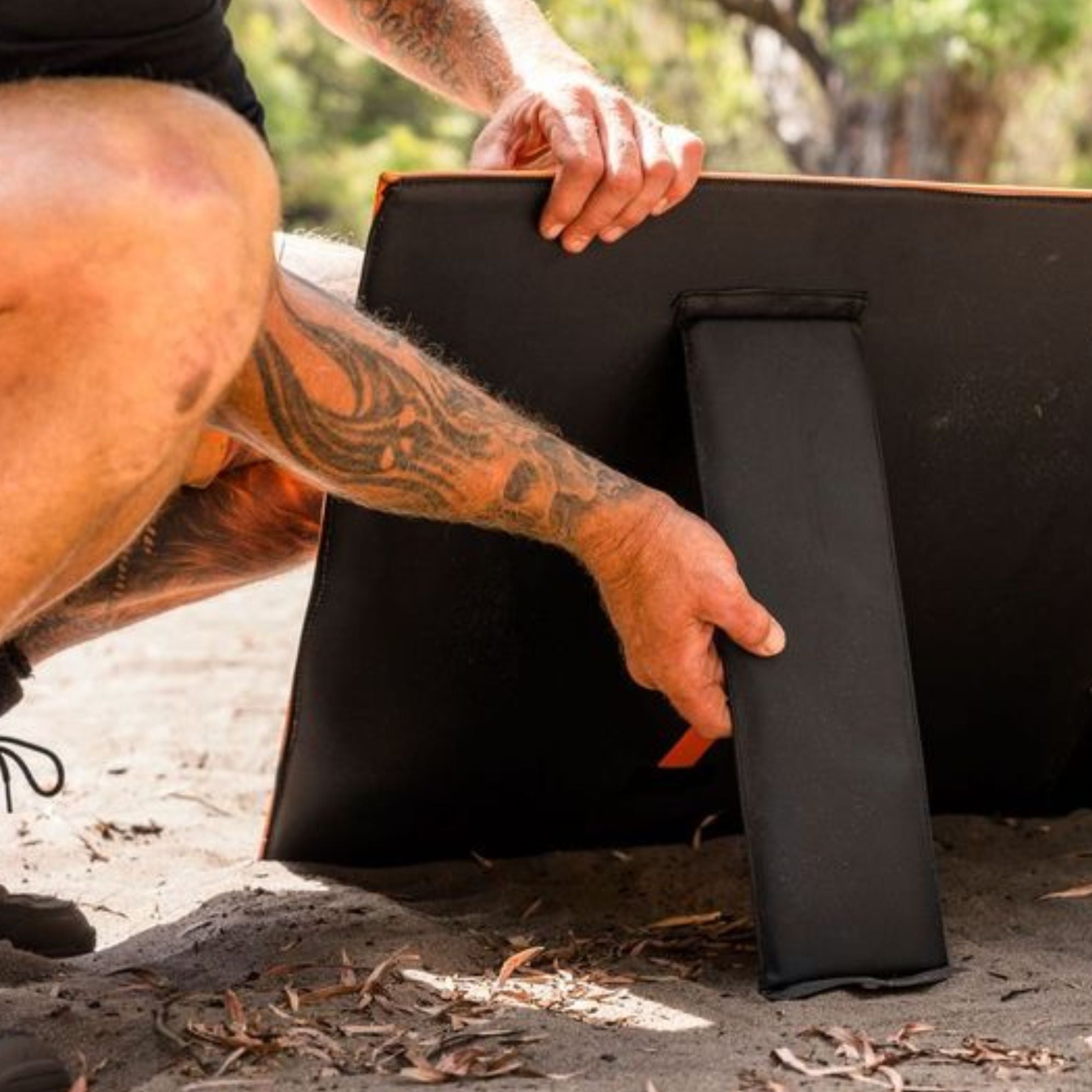

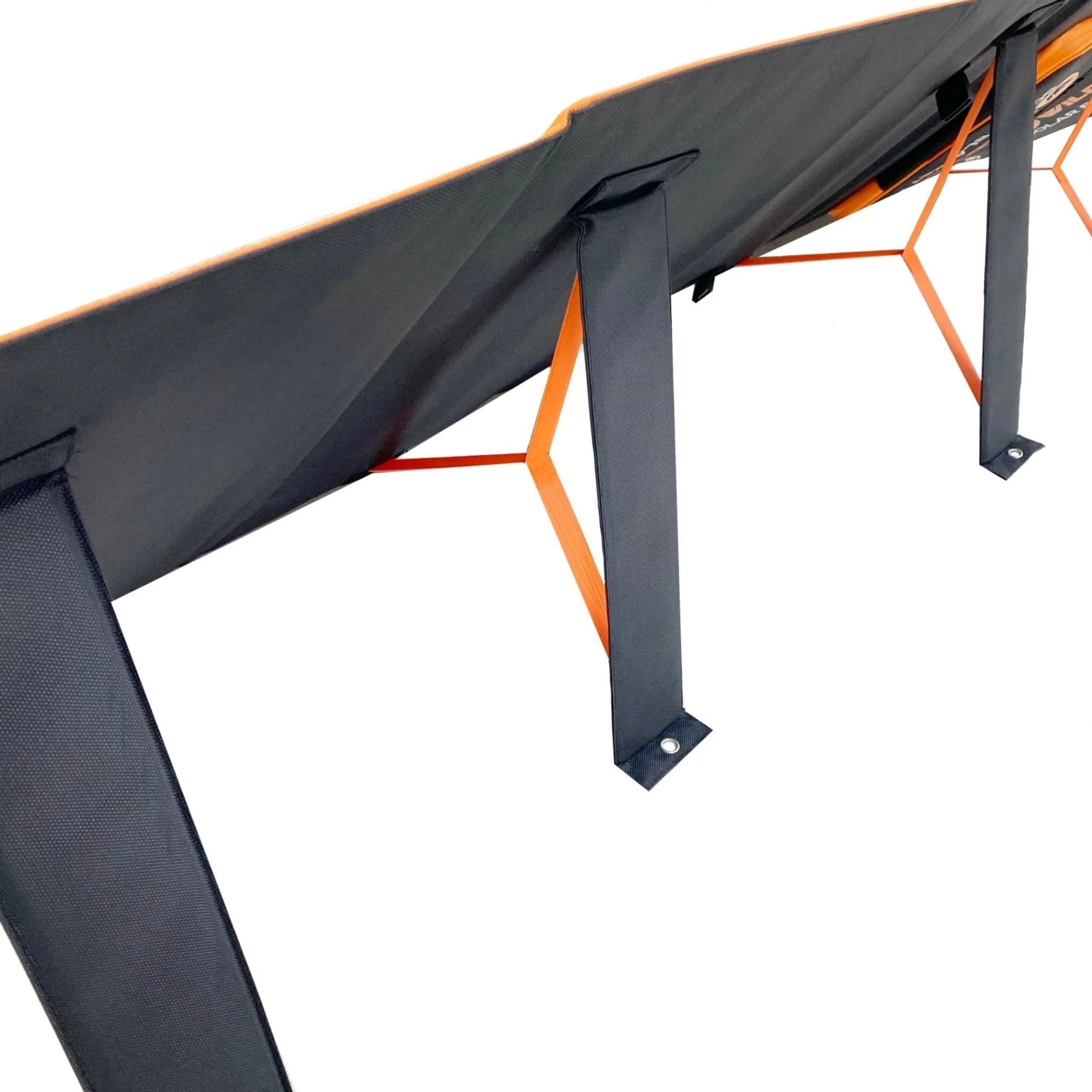

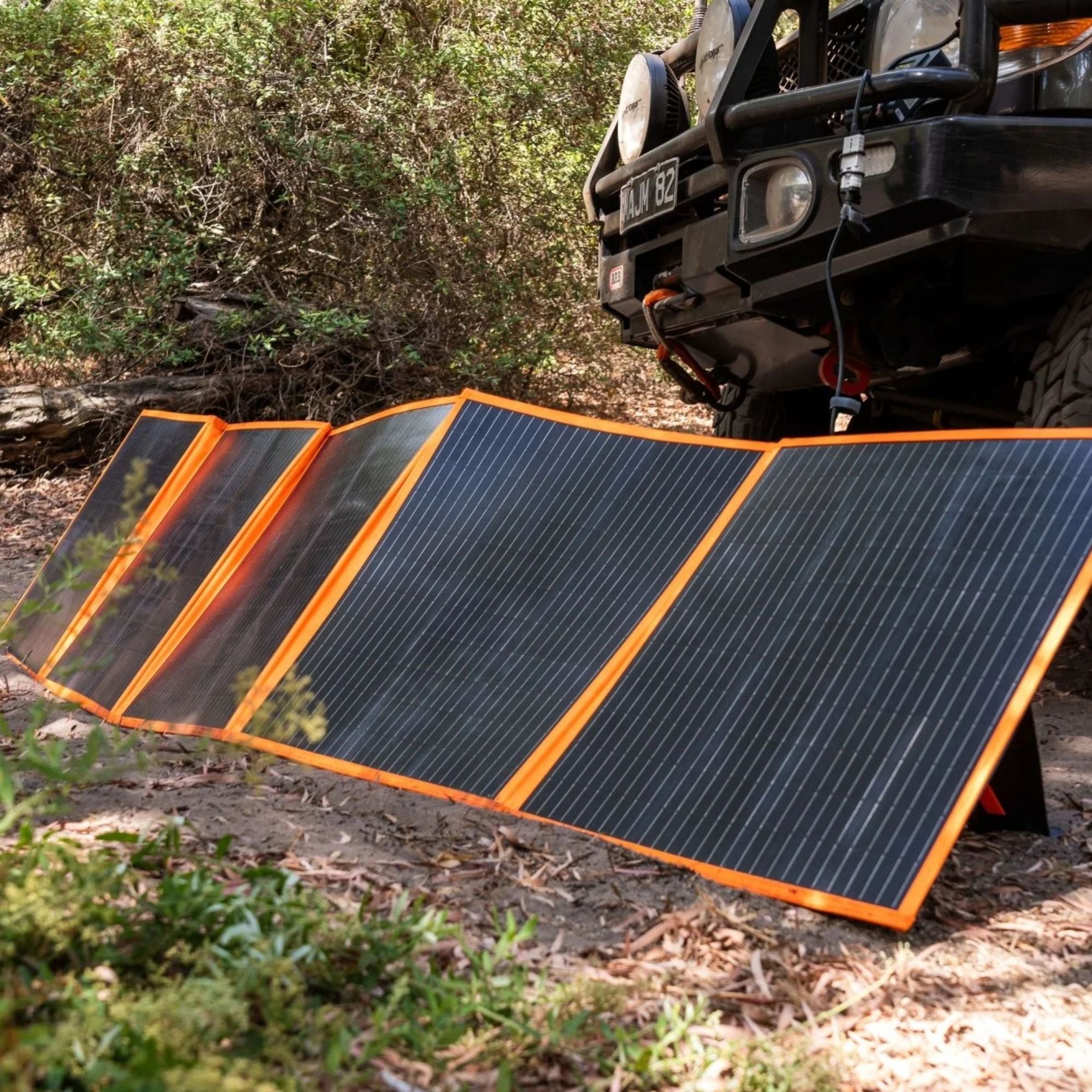

Built-in Stand
Equipped with a backing stand built for angled solar power harvesting, the Wildtrak Solar Blanket maximises its solar energy absorption, allowing you to optimise its performance in varying outdoor conditions.

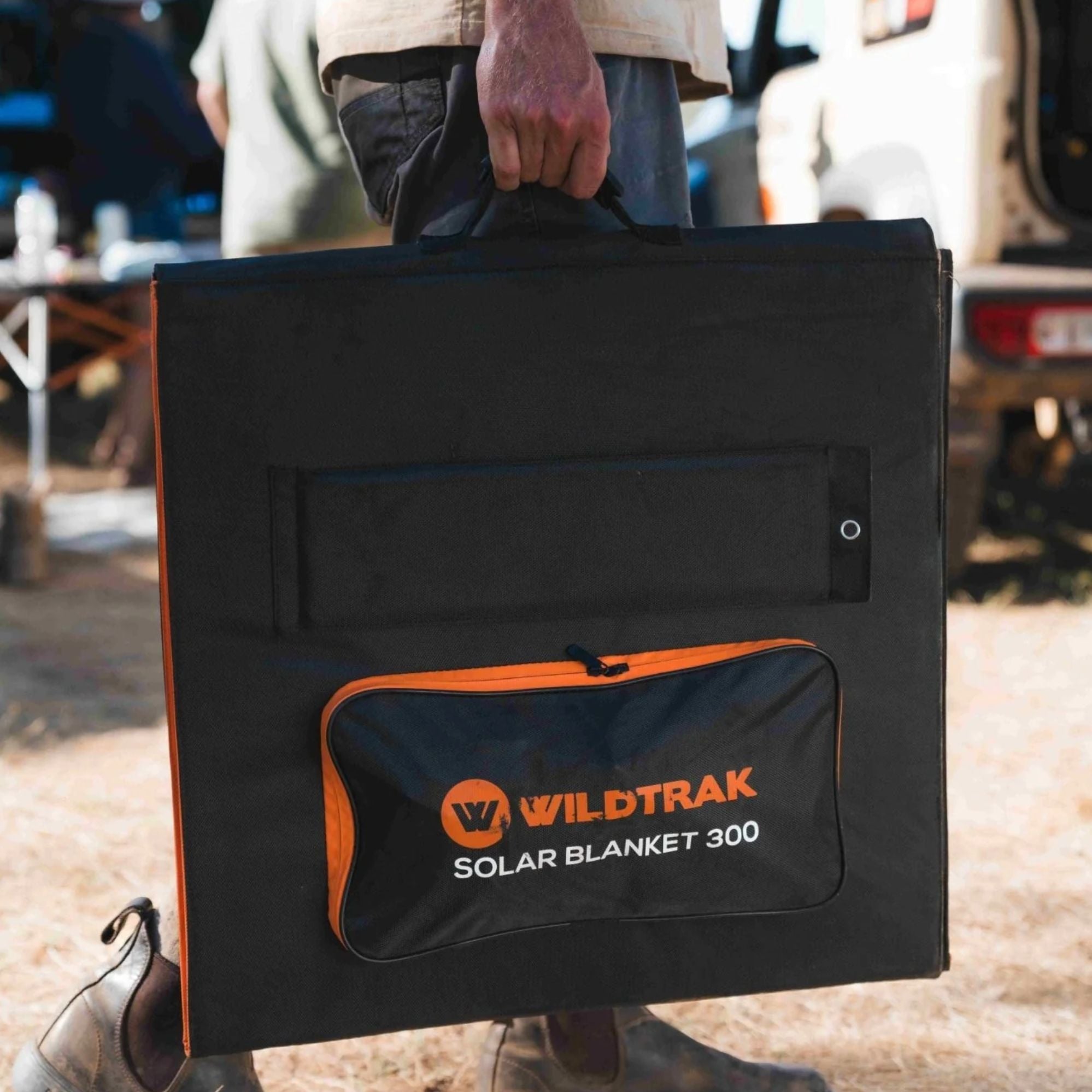

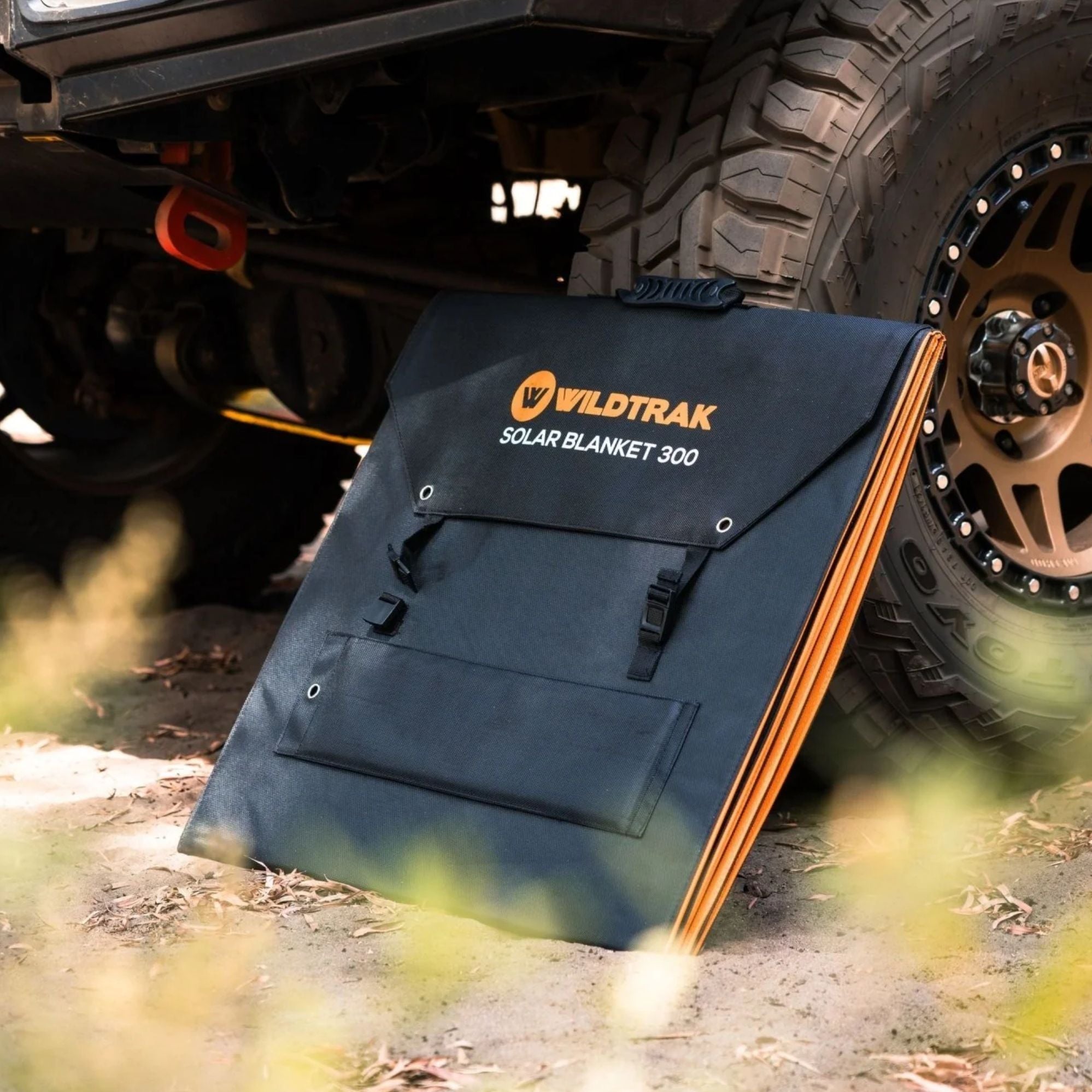

Compact & Portable For On-The-Go Power
Lightweight, foldable, and easy to carry. Set up anywhere and keep your gear powered wherever your adventure takes you.
Compatible with LiFePO4 Batteries
Designed to work perfectly with LiFePO4 batteries, delivering safe, efficient, and reliable charging performance.
What’s Included

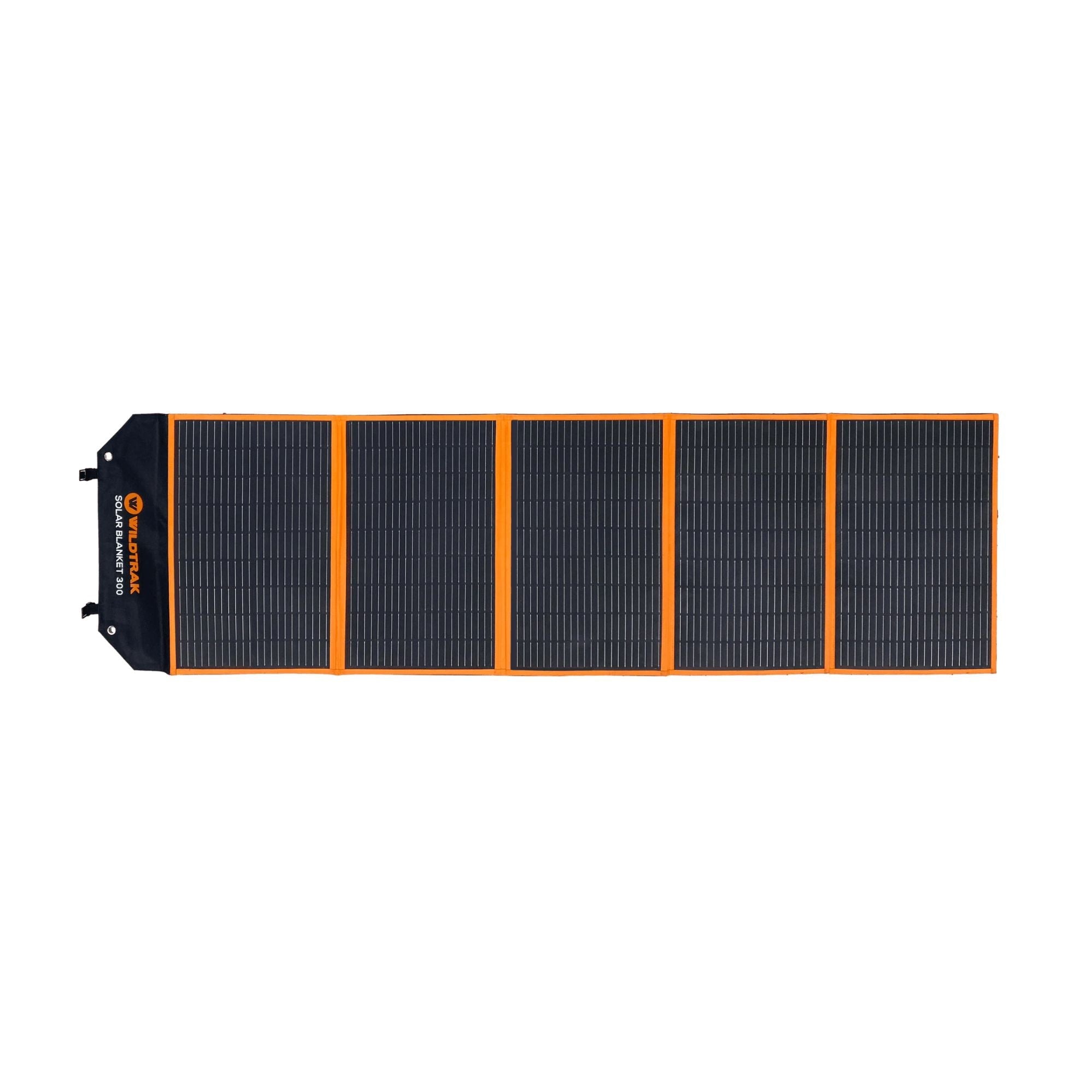

300W Folding Solar Blanket

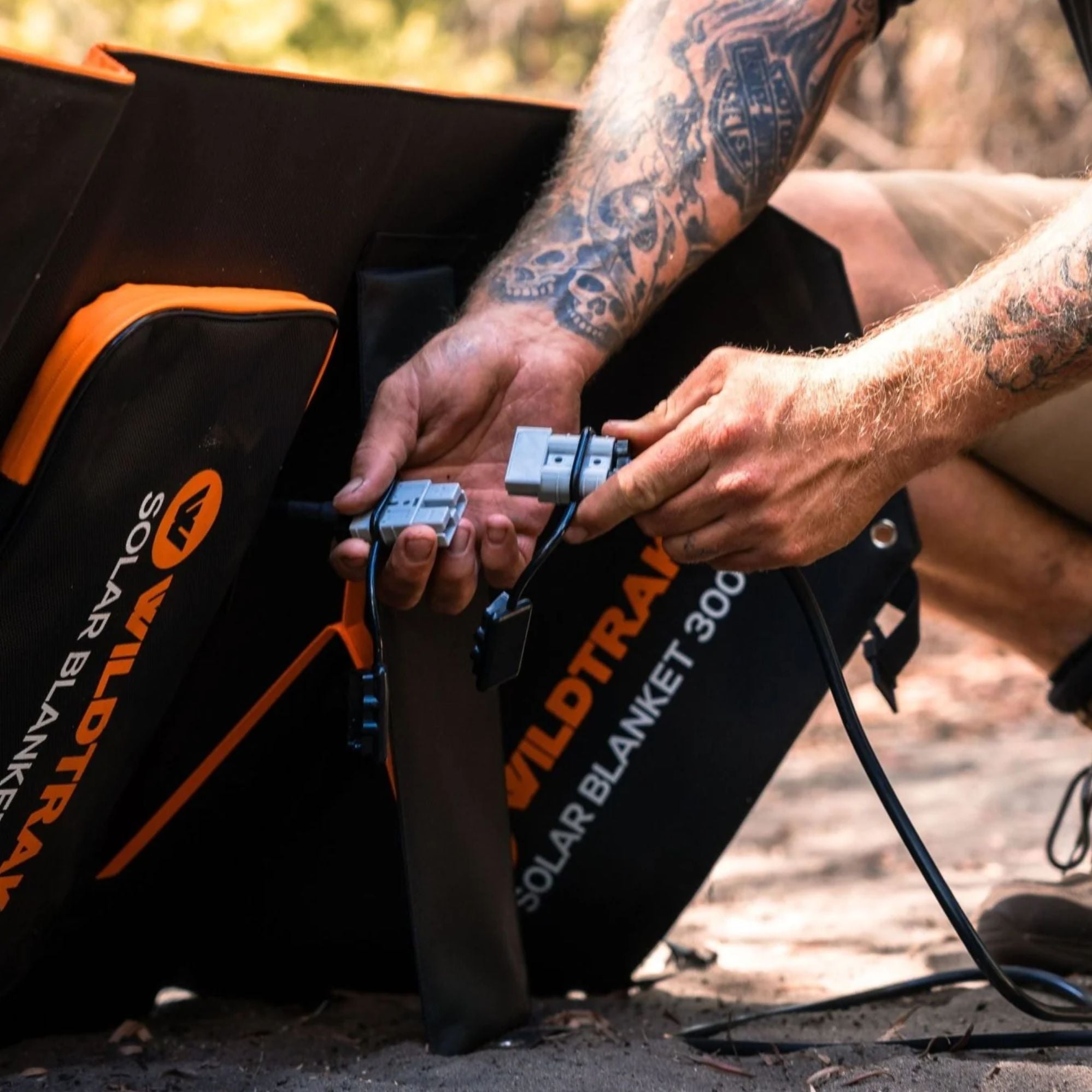

5 Metre Anderson Style Cable
Anderson to Alligator Clips
MPPT Solar Controller
Manual
Features
x- A-Grade Monocrystalline Solar Cells
- ETFE coating for maximum strength and durability
- IP65 waterproof rating
- MPPT Regulator
- Compatible with Lithium LiFePO4, AGM and GEL Batteries and DCDC chargers
- Can be operated with supplied MPPT or can be used in conjunction with most DCDC chargers and controllers, (we recommend that you consult your controller instructions as brands vary)
- Includes battery clips and 5m cable with Anderson style plugs

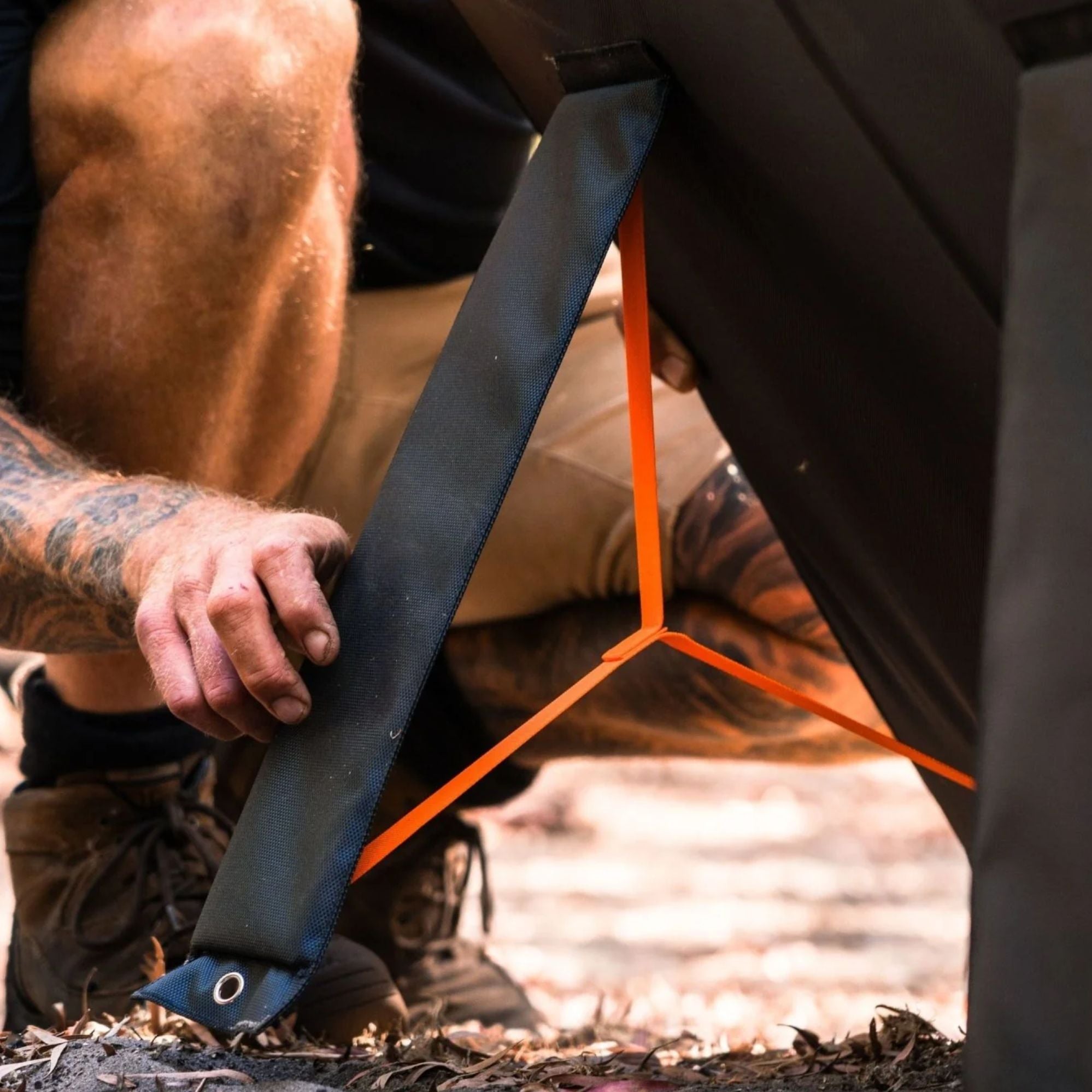

- Foldaway legs which provide angled optimum solar power harvesting
- Folds up into a compact carry bag with front pocket for storing leads and accessories
- 12 month warranty
Specifications
x- Max. Power at STC (Pmax): 300w
- Open Circuit Voltage (VOC): 23.73v
- Short Circuit Current (ISC): 16.9A
- Max. Power Voltage (MVP): 18.98v
- Max. Power Current (IMP): 15.81A
- Tolerance: +/- 5%
- Operating Temperature: -40C to 85C
- Net Weight: 11.95kg (blanket only)
- Gross Weight: 14.75kg (includes blanket, MPPT, cables and packaging)
- MPPT and cables 1.35kg
- MPPT Controller: 20AMP
- Unfolded Size: 300 x 61 x 0.5cm
- Folded Size: 62 x 61 x 4cm
- Front pocket size 46 x 27 x 3cm
- Cell Type: Monocrystalline
- Efficiency %: 22%
- Number of Cells: 165 (3*11*5)
- Connector: Anderson Plug
- Output Cables: 2.5mm2
- ETFE coating rated IP65 (no ingress of dust, protected against water jets from any angle)
- Please note we do not recommend to leave out unattended in bad weather
Shipping & Return
xReturns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
User Manual
xUser Manual
FAQs
xFrequently Asked Questions
Your solar panels should always be connected through a regulator and then the regulator connected to the battery/s. A regulator is required to ensure that none of the high voltages present at the output of a solar panel during good light level conditions can damage the battery/s. ...
Ideally your solar panel should be in direct sunlight for best performance. This means that as much as possible your solar panel should be perpendicular to the direction of the sun rays. In practice this is not easily achievable or convenient and so we recommend that you orient your panels so that they are facing north at about a 45° angle.
Your panels will provide the most power at peak sunlight. This requires no cloud cover and occurs at the middle of the day. Your panels will continue to provide power at a reduced rate before and after this peak sunlight period at any time whilst the sun is out. Your panels will obviously not provide any power before dawn or after dusk.
You should clean your solar panels on a regular basis for best performance as anything that may be blocking sunlight from the photovoltaic material will reduce the efficiency of the panel. Panels should be cleaned using a microfiber cloth as scratches may reduce the performance of your panels.
A “float charge” means the battery is fully charged and only a small maintenance voltage is being applied to overcome internal impedance losses. (trickle charge) Float charging is a maintenance or trickle charge provided to a battery, especially in standby or backup power applications, to compensate for self-discharge and ensure that the battery remains ready for use at all times.
A lithium battery does not need a float charge like lead acid. In long-term storage applications, a lithium battery should not be stored at 100% SOC, and therefore can be maintained with a full cycle (charged and discharged) once every 6 – 12 months and then storage charged to only 50% SOC.
Wildtrak Solar Blankets are wired in Parallel not Series although the 160w Blanket is wired both ways 2 panels in series and 2 in parallel. There are pros/cons both ways but generally it is better to be in Parallel as it means when any shade goes across any part of the panels it will only impact the power generation of the affected panel. Whereas with the series wired panels, if one panel is shaded then it impacts the entire system. The flipside though with series is as all panels are wired in sequence it means you can get more optimal charging time if the best conditions are presented.
